Why America Looks Like a Grid:
The 66-Foot Tool That Shaped a Continent
When you look out of a plane window over the Midwest, you see a perfect mathematical grid stretching to the horizon. Europe’s roads curve around hills and history. America’s roads run in dead-straight lines. The reason is a single 18th-century tool — and a single obsessive idea.
American schoolchildren learn about the Declaration of Independence and the Constitution. Almost none learn about the Ordinance of 1785 — the law that actually determined what the United States would look like, feel like, and function like for the next 250 years. That ordinance encoded a single surveying tool, the Gunter’s Chain, into the legal foundation of an entire continent. You are living inside its geometry right now.
The Geographer’s Line: Where America Becomes a Grid — The invisible boundary where organic Eastern land meets the mathematical certainty of the Public Land Survey System, visible from altitude at the Pennsylvania–Ohio border
Section 01 — The Hook
The View from 30,000 Feet: Why American Land Is Grid-Shaped
Find a window seat on any flight from New York to Los Angeles and watch the landscape change. Over Pennsylvania and Virginia, the fields are irregular shapes, following rivers, ridgelines, and centuries of informal boundary-setting. Then, somewhere over western Ohio, something happens. The landscape suddenly snaps into a perfect grid. Square fields. Straight roads. Neat parcels of green and gold, lined up like graph paper, stretching all the way to the Rocky Mountains.
It’s one of the most dramatic visible transitions on the planet — from the organic, inherited patchwork of the East to the mathematical certainty of the West. Geographers call this boundary the “Geographer’s Line” — the official start of the Public Land Survey System (PLSS), surveyed beginning in 1785. Pilots call it the point where America stops looking European.
American land is grid-shaped west of Ohio because of the Public Land Survey System (PLSS), established by the Land Ordinance of 1785. The law divided the entire continent into 6-mile townships and 1-mile sections using a 66-foot surveying chain — creating the mathematical checkerboard still visible from aircraft today.
The question is why. The answer isn’t just “open space.” There was plenty of open space in Virginia, and Virginia looks nothing like Iowa. The answer is a deliberate engineering decision made by one of the most mathematically obsessed founding fathers, enforced by a tool that is exactly, precisely, deliberately 66 feet long.
The transition from Metes-and-Bounds to the Jeffersonian Grid is visible at approximately the western border of Pennsylvania. This line — formally surveyed in 1785 by Thomas Hutchins, the first Geographer of the United States — is one of the few human boundaries clearly visible from 30,000 feet. It is the boundary between two entirely different philosophies of how land should be described, owned, and governed.
Organic & Unmeasurable
Boundaries follow rivers, rocks, and trees. Landmarks disappear. Descriptions conflict. Neighbours dispute. Courts fill up. Land can’t be sold to people who’ve never seen it.
Mathematical & Transferable
Boundaries are numbered coordinates. Land can be sold sight-unseen. Taxes can be calculated from a desk. Courts empty. An entire continent becomes administrable without a single government official setting foot on it.
Section 02 — The Problem
The Chaos of the East: Why the Metes and Bounds System Failed
To understand why the Jeffersonian Grid was revolutionary, you need to understand what it replaced. The eastern American colonies inherited their land-description system from England. It was called Metes and Bounds, and it was, by any engineering standard, a disaster.
How the Metes and Bounds Land Survey System Worked
A Metes and Bounds deed described land in plain English, using landmarks and compass bearings. A typical colonial deed might read: “Beginning at the white oak at the creek, thence North 42 degrees East to the large stone at the top of the ridge, thence East to the corner of John Harrison’s fence…” This system had three fatal flaws, all of which became catastrophic at scale.
First, landmarks disappear. Trees die. Rocks get moved. Fences are relocated. Within one generation, the “white oak at the creek” is gone, and the boundary it anchored becomes a matter of opinion. Second, surveys overlapped. Because each parcel was described independently from arbitrary starting points, there was no guarantee that one survey’s boundaries matched its neighbour’s. Overlapping claims were common, and courts spent decades untangling them. Third, and most importantly, you had to be there. You couldn’t sell land to someone in England or Philadelphia who had never visited. There was no way to describe the parcel without physically walking it.
The Metes and Bounds system was the colonial land-description method inherited from English common law. It defined property boundaries using natural landmarks — trees, rocks, rivers — and compass bearings. It failed at scale because landmarks disappear, surveys overlapped, and land could not be sold to buyers who had never visited the site. By the 1780s, it had paralysed land administration across the eastern United States.
Historian Patricia Watlington estimated that land disputes consumed more court time in colonial Virginia than any other category of litigation combined. When Daniel Boone explored Kentucky in the 1770s, he found the region already paralysed by overlapping land grants — some parcels claimed three or four times over by different colonial patents. Boone himself eventually lost most of his own Kentucky land to Metes-and-Bounds paperwork conflicts.
The Revolutionary Government’s Nightmare
When the Continental Congress took control of the Northwest Territory — the vast lands between the Ohio River and the Great Lakes — in 1783, it inherited a crisis. The new government was bankrupt from the war. Its only real asset was land: 264 million acres of it. To pay off debts, fund schools, reward veterans, and attract settlers, it needed to sell that land. But to sell it, it needed a description system that was consistent, scalable, and legible to buyers who would never leave Philadelphia. Metes and Bounds couldn’t do any of that.
What the young republic needed was a system that turned geography into mathematics — that replaced uncertain landmarks with certain coordinates. They needed an invisible, indestructible infrastructure. What it got was Thomas Jefferson.
Section 03 — The Enlightenment Solution
Jefferson’s Enlightenment Obsession: The Decimal Dream Behind the US Land Survey System
Thomas Jefferson was, among other things, a devoted mathematician. He kept a copy of Euclid’s Elements on his nightstand. He designed Monticello’s floor plan using precise geometric ratios. He was one of the earliest American advocates for the metric system. And when the Continental Congress gave him a committee to design a land survey system for the new nation’s western territories, he approached it like an engineering problem.
Jefferson’s original proposal, submitted to Congress in 1784, was characteristically elegant. He wanted everything in tens. The basic unit of land would be a “Hundred” — a square ten geographical miles on each side. Inside that would be “Lots” of one square mile. Everything would nest neatly. A country that had just fought a revolution on Enlightenment principles — reason, science, rational order — would have a landscape designed on Enlightenment mathematics.
“Let the work of this day recommend itself to posterity by its consistency, its universality, and its mathematical exactness.”
Thomas Jefferson — on the design of the Western land survey system, 1784The Compromise That Built America
Congress didn’t fully accept Jefferson’s decimal system. The final Land Ordinance of 1785 — passed after Jefferson had left for Paris as American minister to France — kept the basic rectangular grid idea but shifted the unit sizes. Townships would be 6 miles square rather than 10. Inside each township, land would be divided into 36 Sections, each one square mile (640 acres).
Why six miles? Because six miles is exactly 480 Gunter’s Chains. And one square mile is exactly 6,400 square chains, which equals exactly 640 acres. The entire US land survey system was built around one surveying instrument: a chain invented by an English mathematician 165 years earlier, whose dimensions made the arithmetic of land come out whole every single time.
Jefferson’s obsession with decimal units was overruled — but the Gunter’s Chain made the final system even more mathematically elegant. A township side (6 miles = 480 chains). One section (1 mile = 80 chains). Half a section (320 acres = 40 chains × 80 chains). A quarter-section (160 acres — the exact size of a Homestead Act claim). Every standard American farm unit is a clean multiple of the chain. This is not an accident.
Stop for a second.
Everything you’re about to read next — every farm, every road, every small town in the Midwest — exists because of one decision made in 1785.
Not politics. Not war. A measurement system.
Section 04 — The Engineering of the Tool

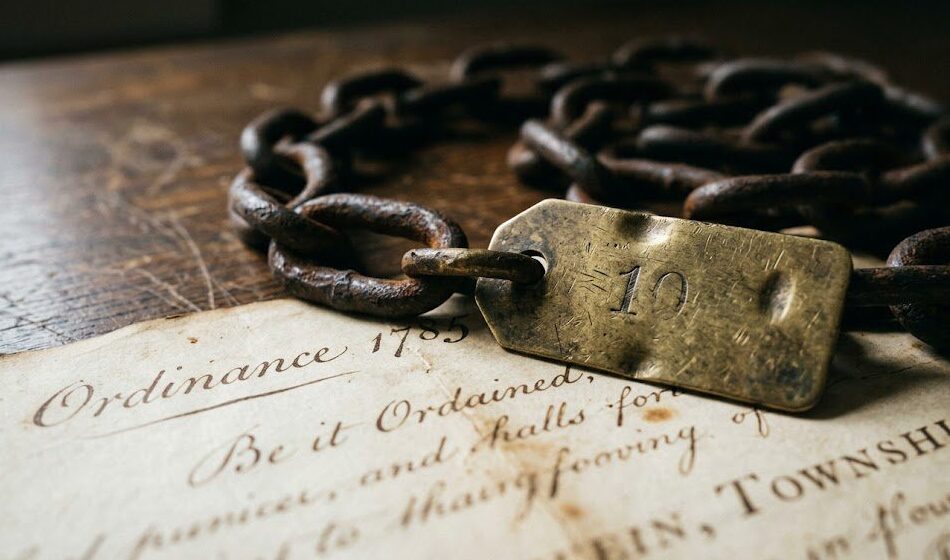

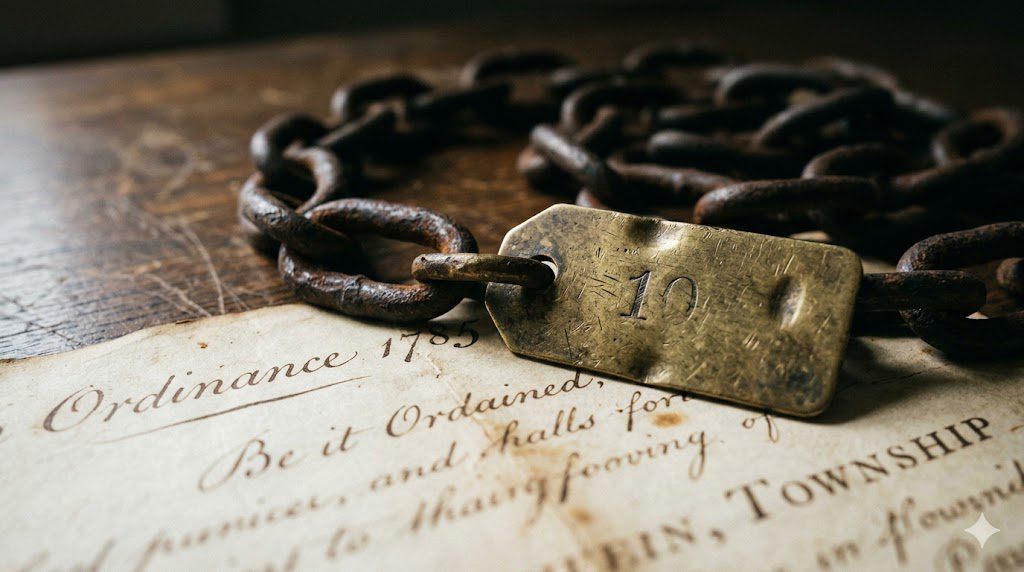

66 Feet of Pure Control: The Engineering of the Gunter’s Chain Explained
Before Edmund Gunter, surveying was slow, error-prone, and non-transferable. Different surveyors used different measuring rods in different regions. Land areas couldn’t be compared across jurisdictions. Converting field measurements to acres required complicated fractions that took hours to resolve. Gunter, a professor of astronomy at Gresham College in London, changed all of this in 1620 with a single device so elegant it deserves to be called a stroke of genius.
Here’s the part most people never realise — Gunter didn’t invent a tool and then figure out what it was good for. He started with the answer he needed, then reverse-engineered the tool to produce it perfectly.
Why the Gunter’s Chain Is Exactly 66 Feet: The US Land Survey Standard
Edmund Gunter didn’t pick 66 feet at random. He reverse-engineered it from the answer he needed. In English land measurement, an acre was a well-established unit: it was the amount of land one man with one ox could plough in one day, and it had been standardised at 43,560 square feet. The English also used the furlong (660 feet) and the mile (5,280 feet) as distance units. Gunter needed a chain that would make converting field distances to acres a matter of simple mental arithmetic.
A Gunter’s Chain is a surveying instrument invented by English mathematician Edmund Gunter in 1620. It is exactly 66 feet long, divided into 100 links. The length was mathematically chosen so that 10 square chains = exactly 1 acre — meaning any rectangular field measurement converts to acreage by simple multiplication, with no fractions. This made it the perfect tool for the 1785 US Public Land Survey System.
His solution: a chain of exactly 66 feet, divided into exactly 100 links. With this tool, the mathematics become almost magical in their simplicity:
The Mathematics of 66 Feet — Why Gunter’s Number Was Perfect
The key insight: 10 square chains = exactly 1 acre. That means any rectangular field measurement — in chains and links — converts to acreage by simple multiplication. No fractions, no tables, no hours of arithmetic. Multiply the length in chains by the width in chains, divide by 10, and you have the area in acres. A 19th-century farmer could do it in his head. A government clerk could process land sales ten times faster. An entire nation could be administered from a desk.
The Complete Unit Hierarchy — From One Link to One Township
Section 05 — The System in Action
The Township and Range System Explained: How to Locate Any Piece of American Land
The Public Land Survey System (PLSS) works by establishing two fixed lines for each region of the country: a Principal Meridian (running north-south) and a Base Line (running east-west). Everything is measured from the intersection of these two lines. There are 37 Principal Meridians in the United States, each with its own Base Line, covering different regions of the country.
Townships, Ranges, and Sections — The PLSS Grid Structure
From a Principal Meridian, surveyors measured east or west in columns called Ranges (each 6 miles wide). From the Base Line, they measured north or south in rows called Townships (each 6 miles tall). Every 6×6 mile square created by the intersection of a Range and a Township Row is called a Township — and it has a unique address. “Township 4 North, Range 7 East of the 5th Principal Meridian” describes a precise, unambiguous parcel anywhere in Missouri, Arkansas, or Iowa.
Inside each Township, land is divided into 36 Sections of exactly one square mile (640 acres) each. Sections are numbered in a specific pattern — starting in the northeast corner, running west, then dropping a row and running east, snaking back and forth like a typewriter carriage. Section 16, always in the centre of the township, was reserved by law for public school funding — a provision that, more than any other, determined where America’s rural schools would be built.
Township Grid — Fully Annotated
Section 16 of every Township was reserved by the Land Ordinance of 1785 to fund public education. When a township was settled and sold, the proceeds from Section 16 went to build a school. This is why so many rural American townships still have a school or a community building at precisely the geographic centre — they’ve been legally required to since 1785. It’s not tradition. It’s surveying code baked into federal law.
Section 06 — The Legacy
Why Your Main Street Is 66 Feet Wide: The Jeffersonian Grid’s Living Legacy
The Jeffersonian Grid wasn’t just a surveying system. It was the invisible operating code that the United States ran on for over a century. Once the PLSS grid was in place, everything else followed its geometry — roads, towns, counties, states, and eventually the legal addresses of 400 million Americans.
Road Widths and the 66-Foot Right-of-Way
When frontier townships were platted for settlement, roads were typically laid along Section lines. The standard right-of-way for a public road in the PLSS states was one chain wide — 66 feet. That’s enough room for two wagon tracks, drainage ditches on both sides, and room to pass oncoming traffic. One-and-a-half chains (99 feet) became the standard for main commercial streets in small towns, because it allowed for parallel parking plus two travel lanes. Many American Main Streets are still exactly those widths today — not because of any modern planning code, but because they follow Gunter’s Chain from 1620.
States Shaped by the PLSS Grid
The grid even influenced how states were formed. The borders of Ohio, Indiana, Illinois, Wisconsin, Michigan, Iowa, Missouri, Minnesota, Kansas, Nebraska — essentially every state admitted to the Union between 1803 and 1870 — are aligned to the PLSS grid. The perfectly straight borders of many Midwestern and Western states are not political compromises. They are range and township lines that happened to be convenient boundaries. The rectangular nature of Colorado, Wyoming, and the Dakotas isn’t a coincidence; it’s the grid made into statehood.
The grid was a masterwork of what we’d now call “remote administration.” A federal clerk in Washington could process the sale of 640 acres in Ohio without any government official ever visiting the site. The parcel had a unique address (T.4N, R.7E, S.14, Fifth Principal Meridian), a known area (640 acres), and therefore a calculable tax value. The young republic turned wilderness into taxable real estate entirely from a desk. No empire in history had previously managed this at continental scale.
The Homestead Act: Where the Jeffersonian Grid Became Democracy
The Homestead Act of 1862 granted any citizen 160 acres of public land — exactly a quarter of a standard PLSS section — in exchange for five years of settlement and improvement. This only worked because the PLSS had pre-divided the entire continent into quarter-sections whose boundaries were already surveyed, staked, and legally recorded. Without the Gunter’s Chain, the Homestead Act would have been unenforceable. The system that gave 160-acre farms to over 270 million settlers between 1862 and 1934 ran entirely on 66-foot arithmetic.
Edmund Gunter Invents His Chain
Gresham College professor Edmund Gunter publishes The Description and Use of the Sector, the Cross-staffe, and Other Instruments, introducing his 66-foot, 100-link measuring chain. He can’t know it will one day define the boundaries of a continent that Europeans haven’t yet colonised.
The Land Ordinance of 1785 — The US Survey System Is Born
The Continental Congress passes the ordinance establishing the Public Land Survey System. The Gunter’s Chain is enshrined as the official surveying instrument. Thomas Hutchins, First Geographer of the United States, begins the first survey at the “Point of Beginning” near East Liverpool, Ohio.
The Northwest Ordinance — Education and Statehood
The Northwest Ordinance expands the PLSS framework. Section 16 is formally reserved in every Township for education. The grid becomes the template for how new states will be organised and admitted to the Union — a template used for the next 85 years.
Land Act of 1796 — The System Is Standardised
Congress refines and standardises the PLSS. The 37 Principal Meridians are established over the following decades, each anchoring a grid for its region of the country. From the Fifth Principal Meridian alone, over 300 million acres will be surveyed.
The Homestead Act — The Grid Becomes Democracy
President Lincoln signs the Homestead Act. Because the PLSS has already surveyed quarter-sections across the West, the government can immediately process claims for 160-acre parcels. Over the next 72 years, 1.6 million homestead claims will be granted, totalling 270 million acres — all administered by Gunter’s arithmetic.
1.5 Billion Acres — Still Running the Same Code
The PLSS remains the legal land description system for most of the United States west of the Appalachians. Every deed, every property tax assessment, every GPS coordinate in those states traces back to a chain survey conducted with a 66-foot chain. Edmund Gunter’s measurement is still the backbone of American real estate law.
System Comparison — Metes & Bounds vs. Jeffersonian Grid
| Feature | Metes & Bounds (East) | PLSS / Jeffersonian Grid (West) | Real-World Impact |
|---|---|---|---|
| Boundary description | Natural landmarks, compass bearingse.g. “to the white oak at the creek” | Mathematical coordinatese.g. “NW¼ of Section 14, T.4N, R.7E” | PLSS parcels can be sold sight-unseen. Metes-and-Bounds parcels require field verification. |
| Parcel shape | Irregular, follows terrainOften five to twelve sides | Rectangular, orthogonalAlways 1 mile × 1 mile at Section scale | Uniform shapes enable uniform taxation. Irregular shapes make comparable assessment nearly impossible. |
| Dispute frequency | Very highLandmarks disappear; surveys overlap | Very lowCoordinates don’t change; boundaries are calculated | Colonial Virginia courts spent more time on land disputes than any other category of litigation. |
| Remote administration | ImpossibleMust physically inspect land to describe it | Fully remoteGovernment could sell and tax without visiting | The U.S. Treasury sold millions of acres purely from desk ledgers using PLSS coordinates. |
| Legacy road width | Variable, follows old pathsOften 20–50 feet, inconsistent | One chain = 66 feet (standard)1.5 chains = 99 feet for commercial streets | Thousands of American Main Streets are still exactly 66 or 99 feet wide because of Gunter’s Chain. |
Section 07 — Frequently Asked Questions
FAQ: The Jeffersonian Grid & Gunter’s Chain
The most-searched questions on the US land survey system, the PLSS, and the Jeffersonian Grid — answered with the primary source evidence documented above.
QWhat is the Jeffersonian Grid?
The Jeffersonian Grid — formally the Public Land Survey System (PLSS) — is the rectangular survey grid imposed on the United States west of the Ohio River by the Land Ordinance of 1785. It divides land into Townships (6 miles × 6 miles) and Sections (1 mile × 1 mile = 640 acres), creating the checkerboard pattern visible from aircraft over the American Midwest and West. It remains the legal land description system for approximately 1.5 billion acres of American land. Learn more about its living legacy →
QWhat is a Gunter’s Chain and why is it exactly 66 feet?
A Gunter’s Chain is a surveying instrument invented by English mathematician Edmund Gunter in 1620. It is exactly 66 feet long and divided into 100 links. The 66-foot length was mathematically chosen: 10 chains = 1 furlong; 80 chains = 1 mile; and crucially, 10 square chains = exactly 1 acre. This made converting field measurements to acreage a matter of simple mental arithmetic — revolutionary for 18th-century land administration. The Public Land Survey System adopted it as the standard American surveying unit in 1785. See the full engineering breakdown →
QWhy are American roads straight and European roads curved?
American roads (west of the Ohio River) follow the rectangular grid of the PLSS, surveyed from 1785 onward. Township and section lines run exactly north-south and east-west, and roads were laid along these lines because they were the only legal boundaries available. European roads evolved organically from ancient paths, animal tracks, and medieval land boundaries that followed natural terrain. The transition point — called the Geographer’s Line — is visible from altitude near the Pennsylvania–Ohio border.
QWhat was the Metes and Bounds system and why did it fail?
Metes and Bounds was the colonial land-description method inherited from English common law, used across the eastern United States. It described property using natural landmarks — trees, rocks, streams — and compass bearings between them. The system failed because landmarks disappear over time, descriptions were often ambiguous, surveyors used different starting points, and boundaries overlapped. Land disputes under Metes and Bounds were so numerous that historians estimate the litigation consumed the majority of colonial Virginia’s court calendar. Read the full analysis →
QWhy is Section 16 always the school section?
The Land Ordinance of 1785 reserved Section 16 — always the centre section of the middle row in a Township — for public school funding. When the Township was settled and its sections sold, the proceeds from selling or leasing Section 16 went to fund a local school. This is why rural schools across the Midwest are often found at the geographic centre of their townships: their location was determined not by community choice but by surveying law written in Philadelphia in 1785.
QWhy are many American state borders perfectly straight?
States admitted to the Union from the PLSS territory (roughly Ohio through the Great Plains and West) were often bounded by PLSS Range and Township lines, which run exactly north-south and east-west. When Congress needed to divide a territory into new states, using existing survey lines was administratively straightforward. The straight borders of states like Colorado, Wyoming, Kansas, North Dakota, and South Dakota are not political accidents — they are PLSS grid lines elevated to statehood boundaries.
The World’s Largest Engineering Project
When historians talk about the founding of the United States, they talk about constitutions, revolutions, and declarations. Rarely do they talk about the surveying chain. But in terms of sheer physical impact on the world, the Gunter’s Chain and the Jeffersonian Grid may be the most consequential engineering decision in American history.
A 17th-century English mathematician’s 66-foot tool became the template for 1.5 billion acres of the world’s most productive farmland, the foundation of 400 million property deeds, the determinant of where tens of thousands of schools were built, and the invisible ruler that drew the borders of more than 20 American states. It’s still running. Every property transaction west of the Ohio River still happens in its coordinate system.
Next time you look out a plane window and see that perfect grid of squares stretching to the horizon, you’re not looking at farmland. You’re looking at mathematics encoded in iron, scaled to a continent.
The Infrastructure That Made America
Every week, The Historical Insights uncovers the forgotten technical decisions that shaped the modern world — the laws, tools, and standards that most history books skip entirely.
Section 08 — Primary Sources
Further Reading & Primary Sources
The following primary and secondary sources underpin the forensic claims in this article.
- Gunter, Edmund. The Description and Use of the Sector, the Cross-staffe, and Other Instruments. London, 1624. Original description and rationale for the 66-foot chain and its mathematical relationships to the acre, furlong, and mile.
- Ordinance of 1785 (Land Ordinance). An Ordinance for Ascertaining the Mode of Disposing of Lands in the Western Territory. Continental Congress, May 20, 1785. Avalon Project, Yale Law School →
- Johnson, Hildegard Binder. Order Upon the Land: The U.S. Rectangular Land Survey and the Upper Mississippi Country. Oxford University Press, 1976. The definitive scholarly study of the PLSS’s geographical and cultural impact.
- White, C. Albert. A History of the Rectangular Survey System. U.S. Department of the Interior, Bureau of Land Management, 1983. BLM PDF →
- Linklater, Andro. Measuring America: How the United States Was Shaped by the Greatest Land Sale in History. Walker & Company, 2002. Narrative history of the PLSS and its human consequences, with detailed coverage of the Gunter’s Chain.
- Jefferson, Thomas. Report of a Committee on a Plan for Temporary Government of the Western Territory. March 1784. Jefferson’s original rectangular survey proposal to Congress. Available via Library of Congress.
