An Interactive History of Measurement
Before the world had maps, it had instruments.
Every border, city block, and property line you have ever stood inside was placed there by someone aiming a sightline across ground they could not directly cross. This is the story of the ancient surveying tools that made that possible: the line that runs from a knotted Egyptian rope to a satellite in orbit, mapping the history of surveying.
Room 1 · c. 2700 BCE, Egypt
The Rope and the Right Angle: Early Ancient Surveying Tools
Long before anyone wrote down the Pythagorean theorem, builders on the Nile were already applying its principles with early surveying instruments: their hands, a coil of rope, and a row of evenly spaced knots.
The Greeks called them harpedonaptai, literally “rope stretchers.” Egyptian temple and pyramid crews deployed lengths of cord knotted into twelve equal segments. Stretched into a triangle with sides of three, four, and five knot-intervals, the cord reliably formed a practical right angle, a property of geometry that would not be formally proven for centuries. This kind of ancient measurement system established trust long before written law.
The Knotted Cord
A single rope, knotted at twelve equal intervals, doubled as a measuring chain and a right-angle tool. Two crew members held the ends while a third pulled the knots taut at the 3-4-5 points, and the geometry stabilized the line.
The base of the Great Pyramid of Giza, roughly 230 meters per side, is square to within a fraction of a degree. That tolerance was achieved using knotted cords together with plumb lines, sighting methods, and meticulous surveying practices across a construction site the length of several modern cities. Egyptian builders appear to have used the practical 3-4-5 triangle centuries before Pythagoras formalized the theorem associated with it.
Try It
Why 3-4-5 always makes a right angle
Drag the slider to stretch the triangle. Watch what happens to the corner angle when the ratio breaks.
Room 2 · c. 250 – 100 BCE, Greece
Greek Sightlines
Egyptian tools could square a flat field. They could not measure the width of a river, or the distance between two mountains. That problem needed angles instead of rope, and the Greeks were the ones obsessed enough with geometry to solve it.
The Dioptra
Described in detail by Hero of Alexandria around the first century CE but likely in use centuries earlier, the dioptra was a graduated disc mounted on a stand, fitted with a rotating sighting arm. It let a surveyor measure horizontal and vertical angles to a distant object with unprecedented precision, the same basic function a modern theodolite still performs.
With one angle measurement and one known baseline distance, a dioptra user could calculate a width or height they had never physically walked, using triangulation: the same trigonometric logic still taught in every surveying course today, eventually applied to tunnel alignment.
Try It
Measuring a river you cannot cross
Move the slider to reposition the far target. The dioptra never touches the other bank: it only measures the angle, then geometry fills in the distance.
Room 3 · c. 100 BCE – 400 CE, Rome
The Roman Grid Machine: Ancient Surveying Tools at Work
Greek instruments were precise but slow, built for scholars. Rome needed something a legion could carry and a half-trained surveyor could operate at speed, because Rome was not measuring single buildings. It was measuring an empire.

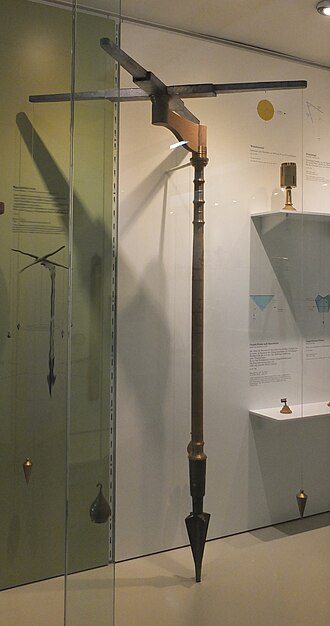

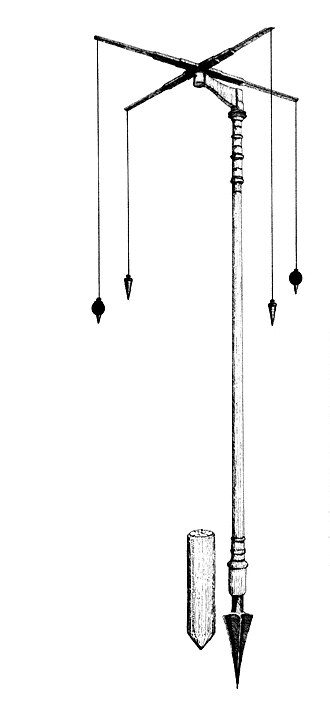

The Groma
A vertical staff topped with a horizontal cross, each of the four arms hung with a plumb line. By sighting along opposite pairs of cords, a Roman agrimensor (land surveyor) could establish two perpendicular lines on open ground in minutes.
The groma served as one of the most critical Roman surveying tools behind much of the empire’s military camps, colonial towns, and above all farmland, being divided using centuriation: a strict grid of squares roughly 710 meters on a side. That grid still shows up in satellite photographs of the Po Valley and parts of southern France today, faintly preserved in field boundaries and rural roads nearly two thousand years later.

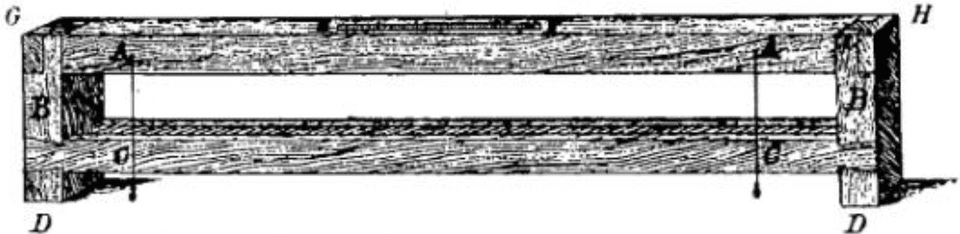

The Chorobates
Where the groma fixed angles, the chorobates fixed elevation. A flat wooden bench roughly six meters long, leveled using a water channel cut into its top surface, similar in principle to a modern carpenter’s spirit level.
It was the instrument that facilitated one of Rome’s most enduring engineering feats: aqueducts that dropped in elevation by only a few centimeters per hundred meters, gentle enough to keep water flowing by gravity alone across dozens of kilometers, yet without ever running uphill.

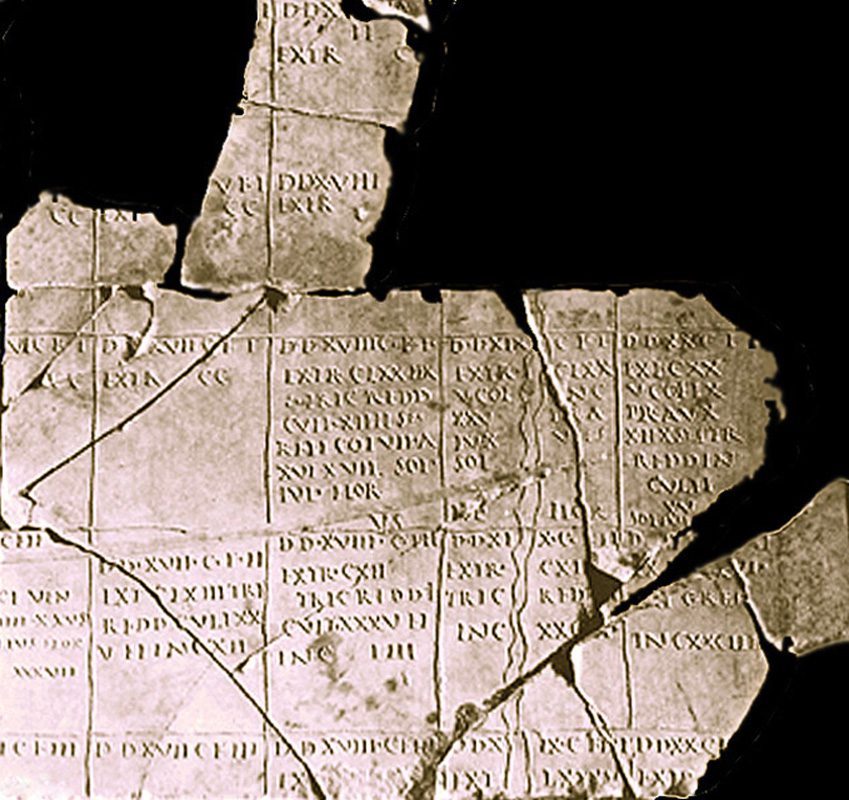

The Cadastre of Orange
The instruments used by the agrimensores were only half of the system. The results had to be recorded. Discovered in France, these fragments of a massive marble map represent the official land registry (cadastre) of a Roman colony.
This physical ledger demonstrates the exact orthogonal grid lines laid out by the groma, verifying property lines for taxation and veteran land grants, permanently cementing the surveyor’s lines into Roman law.
Explore
Where these instruments were actually used
Select a pin to see what was surveyed there, and with what tool.
Room 4 · c. 1571 – 1730, Europe
Renaissance Precision
For a thousand years after Rome’s collapse, surveying technology barely moved. Then printing, optics, and a continent redrawing its property lines after centuries of feudal land tenure created sudden demand for surveying instruments that were portable, affordable, and far more accurate.
The Plane Table
Developed during the mid-16th century and refined through the 1600s, the plane table let a surveyor draw a map directly on site rather than recording numbers to plot later. A sheet of paper sat on a leveled board; a sighting rule called an alidade was laid against a distant feature and a line drawn along its edge.
Move to a second known point, repeat the sighting, and the intersection of the two drawn lines marked the feature’s true position on the map, triangulation made visible in real time, with the map essentially completing itself in the field.
Myth vs. Reality
“Old surveys were rough guesses, that’s why colonial property lines are such a mess today.”
Tap to flipRenaissance instruments could read angles to within a fraction of a degree. Most boundary chaos comes from vague written descriptions (“to the old oak, then to the creek bend”) outliving the landmarks they named, not from poor instrument accuracy.
Room 5 · 1700s – 1900s
The Theodolite Century
The theodolite combined everything earlier instruments did separately into one rotating instrument: horizontal angle, vertical angle, and a telescopic sight. For two hundred years, it was the tool that drew national borders, ran the railroads west, and mapped the Himalayas.

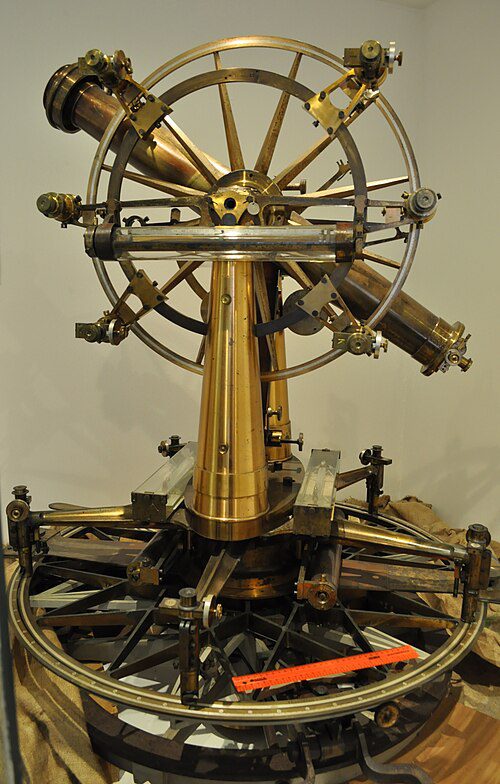

The Theodolite
First built in functional form in the 1720s and steadily refined through the Victorian era, the theodolite mounted a small telescope on two perpendicular graduated circles. A surveyor could read horizontal bearing and vertical elevation from the same sighting, then triangulate distant points with a precision earlier instruments could not match.
The Great Trigonometrical Survey of India, run almost entirely with theodolites between 1802 and 1871, used this instrument to measure the height of Mount Everest using distant triangulation from survey stations rather than direct measurement on the mountain itself.
Compare
Chain Surveying vs. the Transit Instrument
Both instruments worked the American frontier at the same time, but for different jobs. One measured distance on the ground. The other measured angle and direction.
| Feature | Chain Surveying (Gunter’s Chain) | Transit Instrument |
|---|---|---|
| Introduced | 1620 | 1830s |
| What it measures | Straight-line distance | Horizontal & vertical angles |
| Standard unit | 66 feet (1 chain), 80 chains = 1 mile | Degrees, minutes, seconds of arc |
| Crew required | 2–3 chainmen | 1 surveyor, 1 rod-holder |
| Defining legacy | U.S. Public Land Survey grid; the acre itself derives from chain units | Transcontinental railroad alignment; the modern theodolite’s direct ancestor |
Click any era to expand
Room 6 · 1973 – Today
From Satellites to Lasers
The infrastructure principle never changed. Only the reference points did. A theodolite sights a distant tower using triangulation to determine position from measured angles. A GPS receiver sights a distant satellite using trilateration to determine position from measured distances. The underlying logic: fixing position relative to known reference points: remains exactly the same.

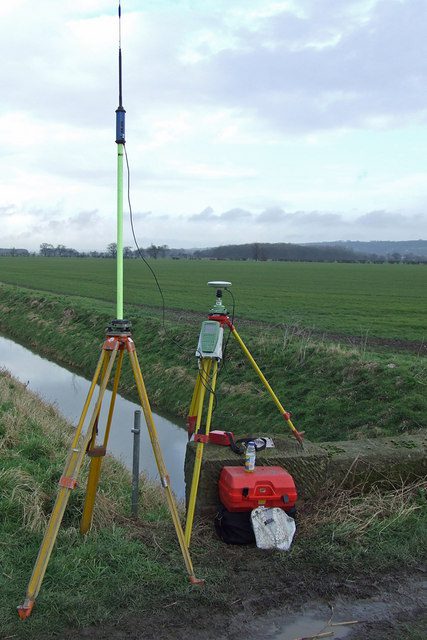

RTK GPS
Real-Time Kinematic GPS compares signals from a fixed base station with a roving receiver, canceling out atmospheric distortion that would otherwise throw off a standard GPS reading by several meters. The result is position accuracy down to roughly one centimeter, available in seconds, anywhere with a clear sky view.
It replaced the theodolite as the default land-survey tool almost entirely by the early 2000s, though theodolites and their electronic descendants, total stations, are still standard for confined or covered sites like building interiors and tunnels where satellite signal cannot reach.

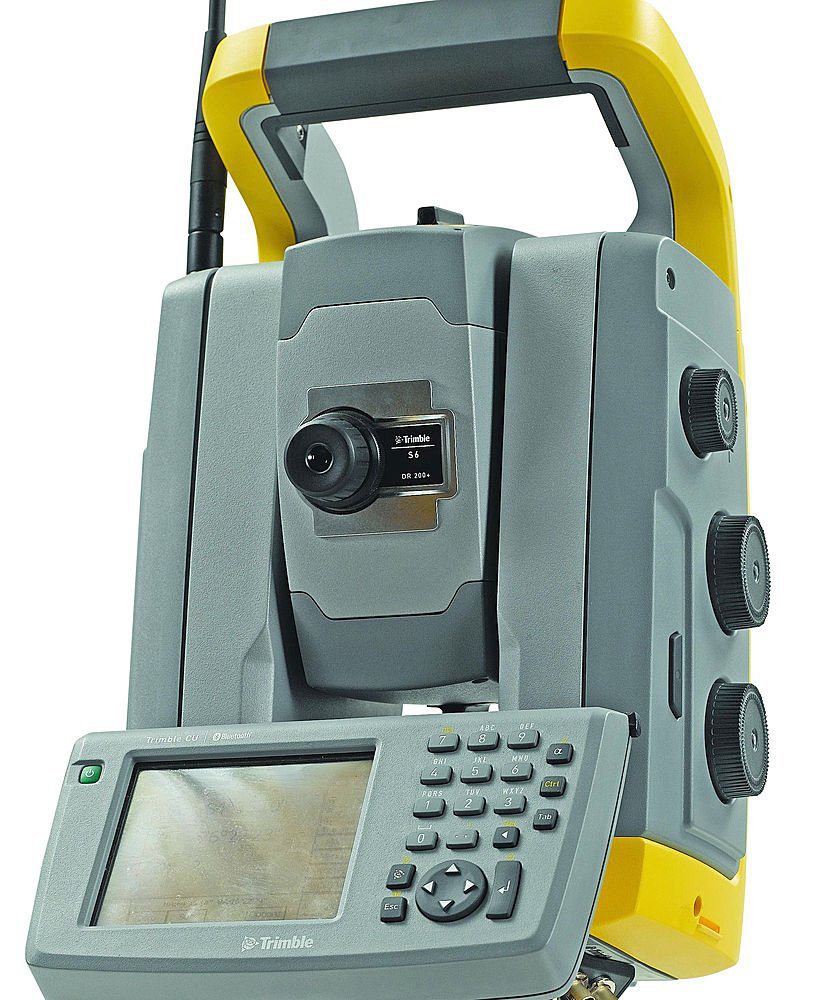

The Total Station
The total station combines a modern electronic theodolite with an electronic distance meter (EDM). By bouncing a modulated infrared signal off a distant reflector, it measures both distance and angle simultaneously, processing the trigonometry onboard to record exact 3D coordinates in milliseconds.
While RTK GPS handles broad open terrain, total stations remain the absolute standard for hyper-precise structural work, bridge alignments, and tunneling operations where satellite signals are blind.
Test Yourself
Guess the Instrument
Read the clue. Pick the tool. Each one appears earlier in the exhibit.
This instrument has no moving parts, no metal, and no glass: just a knotted cord. It still squared the largest stone structure on Earth.
Reference
Field Glossary
The vocabulary surveyors actually used, then and now.
Triangulation
Calculating an unknown distance or position using the angles measured from two known points and the fixed distance between them.
Trilateration
Calculating an unknown position using strictly the measured distances from three or more known reference points, the geometric principle utilized by modern GPS.
Baseline
A precisely measured reference distance between two known points, used as the foundation for triangulating everything else around it.
Centuriation
The Roman practice of dividing conquered or colonized land into a strict grid of square plots, typically around 710 meters per side, using the groma.
Plumb Line
A weighted cord that hangs perfectly vertical under gravity, used since antiquity to establish a true vertical reference line.
Bench Mark
A fixed, permanently marked point of known elevation, used as a reference for all nearby height measurements.
Agrimensor
The Roman state-trained land surveyor, responsible for centuriation grids, boundary disputes, and military camp layout.
Total Station
An electronic instrument combining a theodolite’s angle measurement with a laser distance meter, the direct successor to both instruments.
Point Cloud
A dataset of millions of individually measured 3D points, typically generated by LiDAR, that together form a detailed digital model of a surface or landscape.
Explore the Research Archive
- Campbell, Brian (2000). The Writings of the Roman Land Surveyors. Society for the Promotion of Roman Studies.
- Dilke, O.A.W. (1971). The Roman Land Surveyors: An Introduction to the Agrimensores. David & Charles.
- Edney, Matthew H. (1997). Mapping an Empire: The Geographical Construction of British India, 1765-1843. University of Chicago Press.
- Frontinus, Sextus Julius. De aquaeductu. (Primary text detailing Roman aqueduct leveling techniques).
- Hero of Alexandria. Dioptra. (Primary surviving technical description of Greek triangulation methods).
- Keay, John (2000). The Great Arc: The Dramatic Tale of How India was Mapped and Everest was Named. HarperCollins.
- Kipps, Charles (2004). Out of the Woods: The Development of Land Surveying. Surveyors Historical Society.
- Lewis, M.J.T. (2001). Surveying Instruments of Greece and Rome. Cambridge University Press.
- Linklater, Andro (2002). Measuring America: How an Untamed Wilderness Shaped the United States. Walker & Company.
- Museo Archeologico Nazionale di Napoli. Pompeii Groma Artifact Archive. Physical evidence collections.
- National Geodetic Survey (US). Technical documentation on RTK GPS accuracy standards and geodetic reference networks.
- Richeson, A. W. (1966). English Land Measuring to 1800: Instruments and Practices. Society for the History of Technology.
- Vitruvius, Marcus Pollio. De Architectura, Book VIII. (Primary detailed ancient description of the chorobates leveling instrument).
Common Questions
Common Questions
What is widely regarded as the most influential surveying tool in ancient history?
Many historians consider the Roman groma a primary candidate. It was highly effective, economical to reproduce, and precise enough to lay out the orthogonal grid system used across the empire, from military camps to colonial towns to the centuriation grids still visible in parts of Italy and France today.
How did ancient surveyors measure distances they could not walk, like across a river?
Through triangulation. By sighting the same distant point from two known positions a fixed distance apart, and measuring the angles to that point, surveyors could calculate the unknown distance using basic geometry. The Greek dioptra and later instruments like the theodolite were built specifically for this.
Is GPS surveying actually more accurate than older methods?
Modern RTK GPS and LiDAR are vastly more precise, often accurate to a few millimeters, and far faster. But the underlying logic, fixing position relative to known reference points, is the same principle the Romans and Egyptians were already using two thousand years earlier.
Why did Egyptian rope stretchers matter for the pyramids?
Egyptian builders appear to have used the practical 3-4-5 triangle centuries before Pythagoras formalized the theorem. Rope stretchers, called harpedonaptai by the Greeks, used knotted cords with set proportions to lay out true right angles on open ground, letting them square the base of monuments as large as the Great Pyramid to within a fraction of a degree.
What replaced the theodolite?
The theodolite was gradually replaced starting in the late twentieth century by the total station, which combines angle measurement with an electronic distance meter, and more recently by GPS based RTK systems and LiDAR scanning, which can capture millions of measured points per second.
